Wide Band Differential Amplifier Calculator

The Wideband Differential Amplifier calculator calculate current levels, bias voltage, gain and frequency response for the wide-band differential amplifiers.

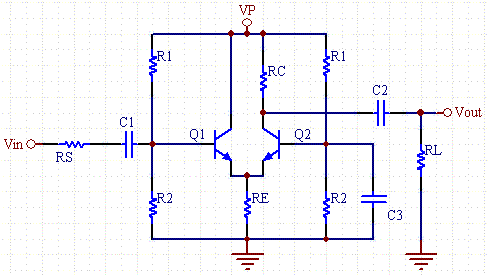

Wide-band Differential Amplifier Calculator

R1(K ohms)

V_C (Collector Voltage)(V)

R2(K ohms)

V_E(Emitter Voltage)(V)

R_C (Collector resistor)(K ohms)

V_B (Base Voltage)(V)

R_E (Emitter resistor)(K ohms)

I_E (Emitter Voltage)(mA)

VP (Supply Voltage)(V)

I_C (Collector Voltage)(mA)

Beta (DC Current Gain)

I_B (Base Voltage)(mA)

V_BE (Base to emitter drop)(V)

g_m (Transconductance)

R_s (Source Resistance):(ohms)

r_π (Input Resistance of BJT at low freq)(ohms)

R_L (Load resistor)(ohms)

r_e(ohms)

f_T (Current Gain BW Product): (MHz)

R_IN(Input Resistance of Amp)(K ohms)

C_CB (Cu Collector-Base Cap.): (pF)

A (Amplifier Voltage Gain)

C_BE (Cπ, Base-Emitter Cap.): Optional(pF)

f_P1(MHz)

f_P2(MHz)

Equations

V_B= VP*R2/(R1+R2)

V_E= V_B-V_BE

I_E=V_E/R_E

Alpha= Beta/(Beta+1);

I_C=Alpha*I_E

V_C= VP - I_C*R_C/2

I_B=I_C/Beta

g_m= Ic/25mA

r_e= Alpha/g_m

r_π=Beta/g_m

A=Alpha* r_π*R_C/(R_s+2*r_π)/r_e

f_P1=1/(2*π*(R_s||2*r_π)*(C_BE/2+C_BC))

f_P2=1/(2*π*R_C*C_BC)

f_T=g_m/(2π*(C_BE+C_BC))

The lower pole is dominate.

1. Overview of Wide-band Differential Amplifier Calculator

The Wide-band Differential Amplifier Calculator simplifies the calculation of key parameters such as current levels, bias voltage, gain, and frequency response. This type of amplifier is characterized by its ability to handle a broad frequency range and maintain high gain, largely thanks to the cascode configuration. This design effectively mitigates the impact of Miller capacitance by connecting Q1's collector and Q2's base to the signal ground, resulting in significantly improved bandwidth compared to standard amplifiers while only requiring one additional transistor.

2. Understanding Wideband Amplifiers

2.1 What Defines a Wideband Amplifier?

Wideband amplifiers amplify signals over a broad frequency range, making them essential for applications where signal integrity over various frequencies is needed. Unlike narrowband amplifiers, which operate within a limited frequency spectrum, wideband amplifiers maintain a consistent gain over a wider range of frequencies, making them ideal for communication systems and other bandwidth-sensitive applications.

Feature	Narrowband Amplifier	Wideband Amplifier
Frequency Range	Limited, specific to one band	Broad, spanning multiple bands
Gain Consistency	Varies across frequencies	Consistent over a wide range
Typical Applications	Radio receivers, filters	Signal boosters, communication systems

An amplifier boosts the amplitude of an input signal, such as voltage or current, using external power. The amount of amplification (or gain) is the ratio of the output signal to the input, measured in voltage, current, or power terms.

3. Exploring Differential Amplifiers

3.1 What Are Differential Amplifiers?

Differential amplifiers amplify the voltage difference between two input signals while rejecting any common-mode signals (such as noise or interference). This ability makes them indispensable in precision measurement and communication circuits. These amplifiers are essential in noise-sensitive applications as they enhance the differential signal while rejecting noise.

For differential amplifiers, the output voltage can be expressed as:

        V_out = A_d × (V₁ - V₂)

Where:
- V_out is the output voltage,
- V₁ and V₂ are the input voltages,
- A_d is the differential gain of the amplifier.

This structure ensures that if the two input voltages are the same, the output will be zero, amplifying only the difference between the inputs.

Parameter	Description
Differential Gain	Amplification of the difference between inputs
Common-Mode Rejection	Suppression of signals common to both inputs (e.g., noise)
Input Signals	V₁ and V₂ (differential inputs)
Output Signal	V_out (based on differential signal)

3.2 Why Use Differential Amplifiers?

Differential amplifiers offer several advantages in minimizing drift and rejecting noise. This is crucial in applications like oscilloscopes and electronic voltmeters, where signal integrity is key. The design’s ability to reduce temperature-induced voltage drift makes it highly reliable, especially in environments prone to noise and interference.

3.3 Practical Applications of Differential Amplifiers

The most common use of differential amplifiers is in environments where noise can corrupt sensitive signals. In particular, common-mode noise, which arises from electromagnetic interference or ground voltage variations, can distort signals. Differential amplifiers excel at rejecting such noise while amplifying the desired signal.

3.4 Types of Differential Amplifiers

Configuration	Description
1. Dual Input, Balanced Output	Both input terminals are active, with balanced outputs
2. Dual Input, Unbalanced Output	Two inputs, but only one output is active
3. Single Input, Balanced Output	One input signal, but balanced output signal
4. Single Input, Unbalanced Output	One input and one output, simplest configuration

3.5 Common Differential Amplifier Circuits

Circuit Type	Key Feature	Common Use Cases
BJT Differential Amplifier	Shares a common emitter connection; voltage amplification	Analog signal amplification
MOSFET Differential Amplifier	Current at drain terminals determines bias; high input impedance	High-speed switching circuits
Op-Amp Differential Amplifier	Simpler design, uses operational amplifiers for feedback	Precision measurement, control systems

In conclusion, the Wide-band Differential Amplifier is a powerful tool for handling wide-frequency signals and differential signal amplification. By incorporating table comparisons and restructuring the content, the focus remains clear and engaging for technical audiences, while ensuring originality.
